Egypt Customer Site · Completed 2024
2024 Egypt Textile Dyeing Project: 6 TPH WNS Gas-Fired Steam Boiler
When an Egypt textile dyeing customer added a new production line, its existing steam supply was insufficient and steam pressure was unstable. JINHONG supplied the WNS6-1.25-Q boiler package, connected it to the line, and completed installation, commissioning and training.
Project Brief
A steam-supply project built around a real production-line problem
This 6 TPH WNS steam boiler project in Egypt began with three confirmed conditions: a new textile dyeing line, insufficient steam supply and unstable steam pressure. JINHONG supplied the confirmed boiler package and carried out on-site installation, production-line connection, commissioning and training.
For planning a similar expansion, review the dyeing-line steam capacity and pressure checklist.
The customer’s challenge
The customer was expanding textile dyeing production with a new line. The existing steam supply was insufficient for the additional demand, while unstable pressure created a second issue for the expanded process.
JINHONG’s solution
JINHONG supplied a WNS6-1.25-Q natural gas steam boiler rated at 6 TPH and 1.25 MPa. JINHONG engineers installed the boiler, connected it to the production line, commissioned the system and provided training.
Challenge to Response
How the confirmed requirements shaped the project scope
Each engineering action below corresponds directly to a requirement confirmed for this project.
Delivery Scope
Equipment supply backed by on-site engineering
JINHONG supplied the boiler, and its engineers carried out site connection, installation, commissioning and on-site training.
Boiler package
The confirmed boiler package supplied for this project.
Installation
On-site installation carried out by JINHONG engineers.
Line connection
Boiler system connected to the customer’s new production line.
Commissioning & training
Commissioning and training completed by JINHONG engineers.
Technical Configuration
WNS natural gas steam boiler for the dyeing line
The selected boiler uses natural gas. Its confirmed combustion configuration combines a low-NOx burner with flue gas recirculation.
- Model: WNS6-1.25-Q
- Steam capacity: 6 TPH
- Rated pressure: 1.25 MPa
- Combustion: Natural gas, low-NOx burner and FGR
See the WNS gas and oil fired steam boiler range for the product platform used in this project.
Actual Project Photos
Installed boiler and site connection details

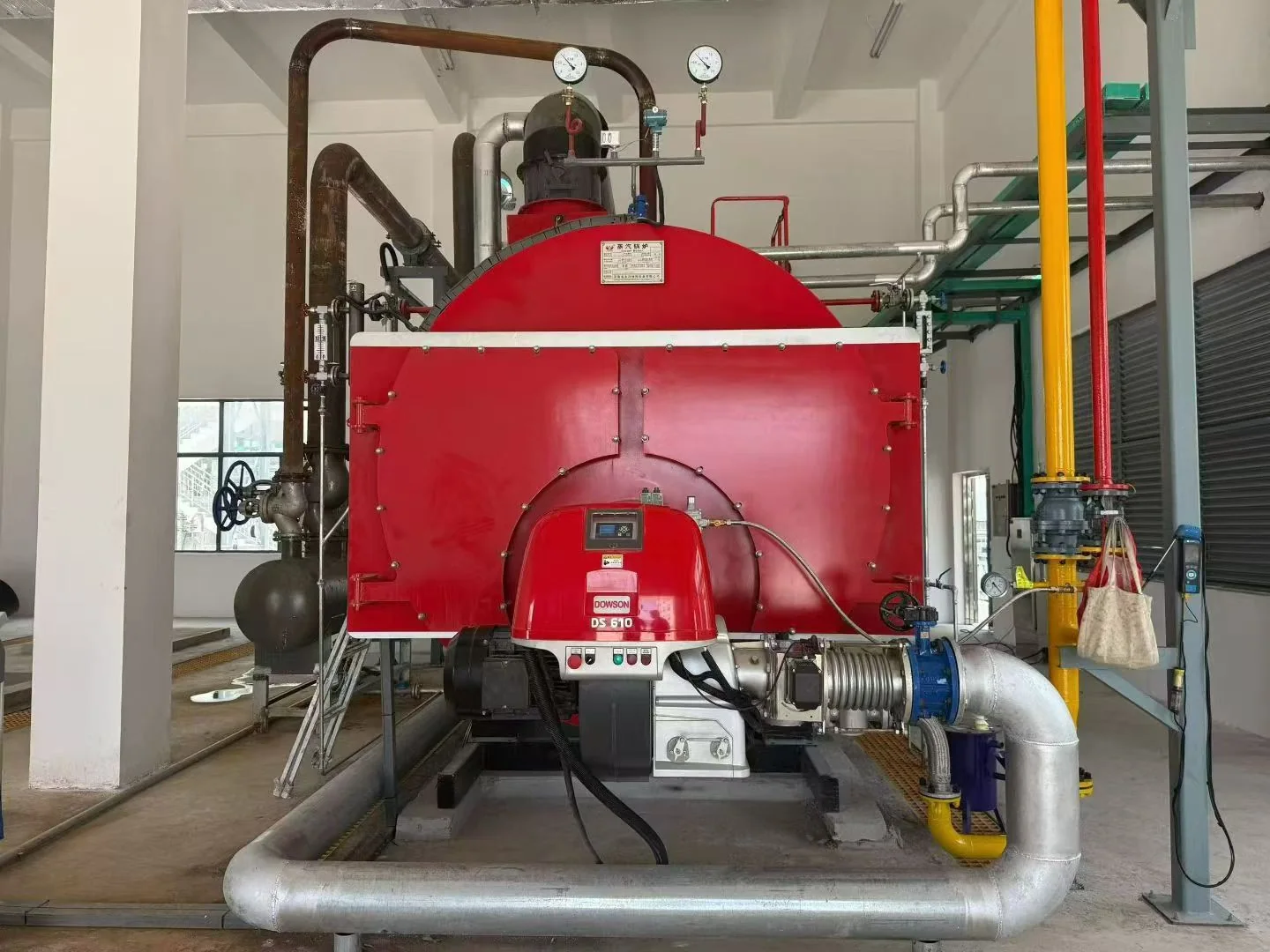

The photographs below were taken at this project and show the installed boiler, burner, instruments and connected site piping.
Project Completion
Completed in 2024
The boiler package was installed and connected to the new production line. JINHONG engineers completed site commissioning and training as part of the project.
For production-side steam planning beyond the confirmed boiler scope, review steam condensate recovery design. Any condensate-return arrangement must be engineered from the actual process and water conditions.
Project FAQ
Key facts about the Egypt boiler project
What boiler was supplied for this project?
JINHONG supplied a WNS6-1.25-Q natural gas steam boiler rated at 6 TPH and 1.25 MPa.
What problem led to the project?
A new production line created additional demand while the existing steam supply was insufficient and pressure was unstable.
What did JINHONG provide?
JINHONG supplied the boiler with a low-NOx burner and FGR. Its engineers handled installation, line connection, commissioning and training.
